A number of different types of transform exist. You can specify a range of transforms for any object you are drawing, applying them to text, pictures, shapes and lines. For instance:

  • You can rotate an object a number of degrees around a point.
  • You can translate (move) an object.
  • You can scale or stretch an object.
  • You can skew an object (a shear or perspective type of operation).
  • You can pin a transformed object to a particular location
  • You can limit the height or width of a transformed object

Any drawable object can be transformed, but be careful about the order you apply transforms as this can result in objects being 'lost' off the edge of your Canvas.

In the examples below the light blue area represents the canvas we are drawing on. Areas outside the canvas are shown to illustrate how objects may be fully or partially 'lost' outside the canvas.

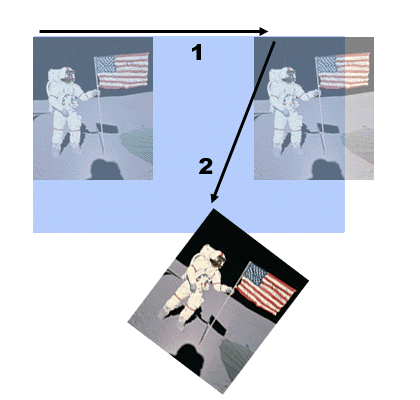

For instance if you first move an object right (1) and then rotate it by 45 degrees round the origin (2),

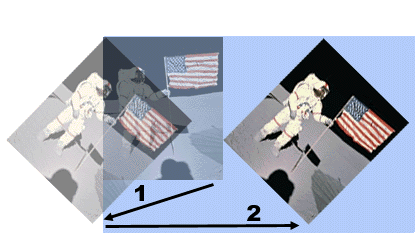

the effect can be completely different than if you rotate the object and then move it,

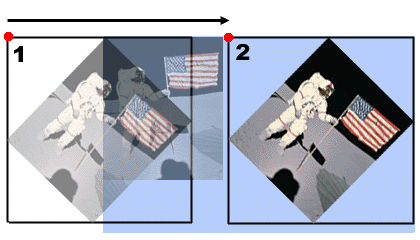

If you wish to ensure that an object always stays in the same place you can apply a pin transform. In the example below we apply a rotation of 45 degrees round the origin, then we pin the rotated object to a location on our canvas. A pin operates on the top left corner of the bounding rectangle of the transformed object. In our case the top left is at position (1). Our pin location is at point (2) and so the image has to be shifted over until point (1) has been pinned to position (2).

Try to avoid mixing positioning parameters and transform parameters as the results can be confusing. If you have to you should bear in mind that the positioning of objects is always calculated before the transform is applied.
