DrawPath
Draws a GraphicsPath.
Syntax

[C#]

void DrawPath(Pen pen, GraphicsPath path);

[Visual Basic]

Sub DrawPath(pen As Pen, path As GraphicsPath)
Params
Name Description
pen The pen to use for drawing the path.
path The path to draw.
Notes

None.
Example

[C#]

using (Bitmap bm = new Bitmap(600, 600)) {
  using (Graphics graphics = Graphics.FromImage(bm)) {
    RectangleF rect = bm.Bounds;
    rect.Inflate(-50, -50);
    GraphicsPath arc = new GraphicsPath();
    arc.AddArc(rect, 135, 270);
    Pen pen = new Pen(Color.Green, 20);
    pen.StartCap = LineCap.OpenArrowAnchor;
    pen.EndCap = LineCap.OpenArrowAnchor;
    graphics.DrawPath(pen, arc);
  }
  bm.Save(Server.MapPath("IG8_GraphicsPath_DrawPath.png"));
}

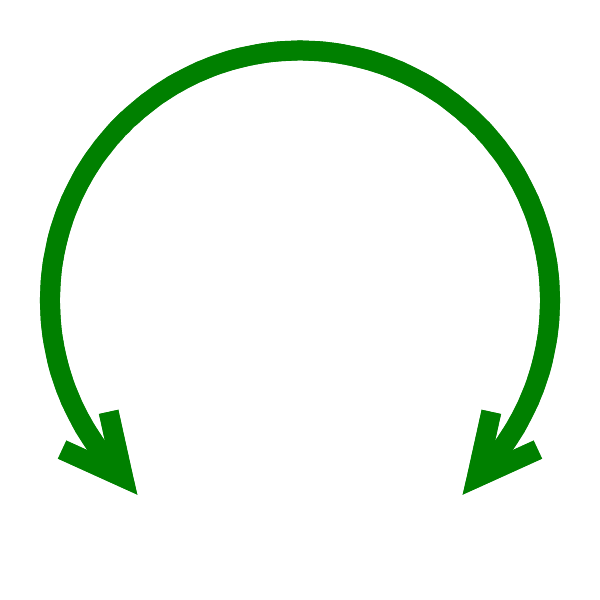

The code here draws an arc into a GraphicsPath. We then draw the arc onto a Bitmap providing arrows at either end. The final output is shown below.
