Gets an array of the locations of tagged visible items.





Syntax


[C#]
XRect[] GetTagRects(int id)

[Visual Basic]
Function GetTagRects(id As Integer) As XRect()





Params

Name Description
id The Object ID of the object.
return The location of tagged visible HTML objects.





Notes


Use this method to retrieve the locations of tagged visible items. The locations are to be used with Doc.Transform being identity.

To use this method you need to enable the tagging functionality. See the AddTags property for details.

This function takes an ID obtained from a call to Doc.AddImageUrl, Doc.AddImageHtml or Doc.AddImageToChain and returns the locations of any items which are visible on the PDF page as a result of that call.

The locations match up directly on a one-to-one basis with the IDs returned by the GetTagIDs function.





Example


The following example shows the effect that this parameter has on HTML rendering.

[C#]
Doc doc = new Doc();
doc.Rect.Inset(100, 100);
doc.Rect.Top = 700;
doc.HtmlOptions.Engine = EngineType.Chrome;
doc.HtmlOptions.AddTags = true;
// The ABCGecko and MSHTML tagging format uses styles.
string html1 = "<!DOCTYPE html><html><head>" +
  "<style type='text/css'>" +
  ".tag-visible { abcpdf-tag-visible:true; outline: 1px solid transparent; font-size: 72pt; }" +
  "</style>" +
  "</head><body>" +
  "<p id='p1' class='tag-visible'>Gallia est omnis divisa in partes tres.</p>" +
  "</body></html>";
// The ABCChrome tagging format uses attributes.
string html2 = "<!DOCTYPE html><html><head>" +
  "<style type='text/css'>" +
  "p { font-size: 72pt; }" +
  "</style>" +
  "</head><body>" +
  "<p id='p1' abcpdf-tag-visible>Gallia est omnis divisa in partes tres.</p>" +
  "</body></html>";
string html = doc.HtmlOptions.Engine != EngineType.Chrome ? html1 : html2;
int id = doc.AddImageHtml(html);
// Frame location of the tagged element
XRect[] tagRects = doc.HtmlOptions.GetTagRects(id);
foreach (XRect theRect in tagRects) {
  doc.Rect.String = theRect.ToString();
  doc.FrameRect();
}
// Output tag ID
string[] tagIds = doc.HtmlOptions.GetTagIDs(id);
doc.Rect.String = doc.MediaBox.String;
doc.Rect.Inset(20, 20);
doc.FontSize = 64;
doc.Color.String = "255 0 0";
doc.AddText("Tag ID \"" + tagIds[0] + "\":");
// Save the document
doc.Save(Server.MapPath("HtmlOptionsGetTagRects.pdf"));
doc.Clear();

[Visual Basic]
Dim doc As Doc = New Doc()
doc.Rect.Inset(100, 100)
doc.Rect.Top = 700
doc.HtmlOptions.Engine = EngineType.Chrome
doc.HtmlOptions.AddTags = True
' The ABCGecko and MSHTML tagging format uses styles.
Dim html1 As String = "<!DOCTYPE html><html><head>" & _
  "<style type='text/css'>" & _
  ".tag-visible { abcpdf-tag-visible:true; outline: 1px solid transparent; font-size: 72pt; }" & _
  "</style>" & _
  "</head><body>" & _
  "<p id='p1' class='tag-visible'>Gallia est omnis divisa in partes tres.</p>" & _
  "</body></html>"
' The ABCChrome tagging format uses attributes.
Dim html2 As String = "<!DOCTYPE html><html><head>" & "<style type='text/css'>" & _
  "p { font-size: 72pt; }" & _
  "</style>" & _
  "</head><body>" & _
  "<p id='p1' abcpdf-tag-visible>Gallia est omnis divisa in partes tres.</p>" & _
  "</body></html>"
Dim html As String = If(doc.HtmlOptions.Engine <> EngineType.Chrome, html1, html2)
Dim id As Integer = doc.AddImageHtml(html)
' Frame location of the tagged element
Dim tagRects As XRect() = doc.HtmlOptions.GetTagRects(id)
For Each theRect As XRect In tagRects
  doc.Rect.String = theRect.ToString()
  doc.FrameRect()
Next
' Output tag ID
Dim tagIds As String() = doc.HtmlOptions.GetTagIDs(id)
doc.Rect.String = doc.MediaBox.String
doc.Rect.Inset(20, 20)
doc.FontSize = 64
doc.Color.String = "255 0 0"
doc.AddText("Tag ID """ & tagIds(0) & """:")
' Save the document
doc.Save(Server.MapPath("HtmlOptionsGetTagRects.pdf"))
doc.Clear()

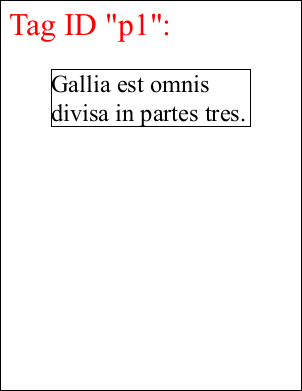

HtmlOptionsGetTagRects.pdf
